Special


Special Tube-Bending Machines

Even with a large selection of standard Criterion Tube Bender designs, it is sometimes necessary to design a special Tube-Bending Machine to provide the optimum application solution. We often construct Special Tube-Bending Machines by using standard bend modules that are derived from our standard Tube Bending Machines. Applications that may require a specially designed Tube Bender usually have one or more of the following characteristics:

  • Very Large Radius
  • Very High Volume
  • Unique Material Spring-Back Vs. Part Repeatability Requirements
  • Complex Part Design With Multiple "Design Interference" Zones
  • Requirement For Unique Material Handling Of Part In Automatic Machine

In-Line Transfer Tube Benders

Criterion also provides in-line multiple station transfer Tube Benders that use either compression or draw bending heads. The type of control (CNC or non-CNC) used depends upon your application.

Automatic Press Bender Special Automatic Bender for Automotive Trunk Hinge Tube
Special Bend, Pierce And Drill Combination Special Bender for Aluminum Extrusion
Transfer Machine Application



Special Bend Drill Combination

01: SPECIAL BEND, PIERCE AND DRILL COMBINATION


Bent Pipe

02: SPECIAL AUTOMATIC BENDER FOR AUTOMOTIVE TRUNK HINGE TUBE


Automatic Press

03: AUTOMATIC PRESS BENDER

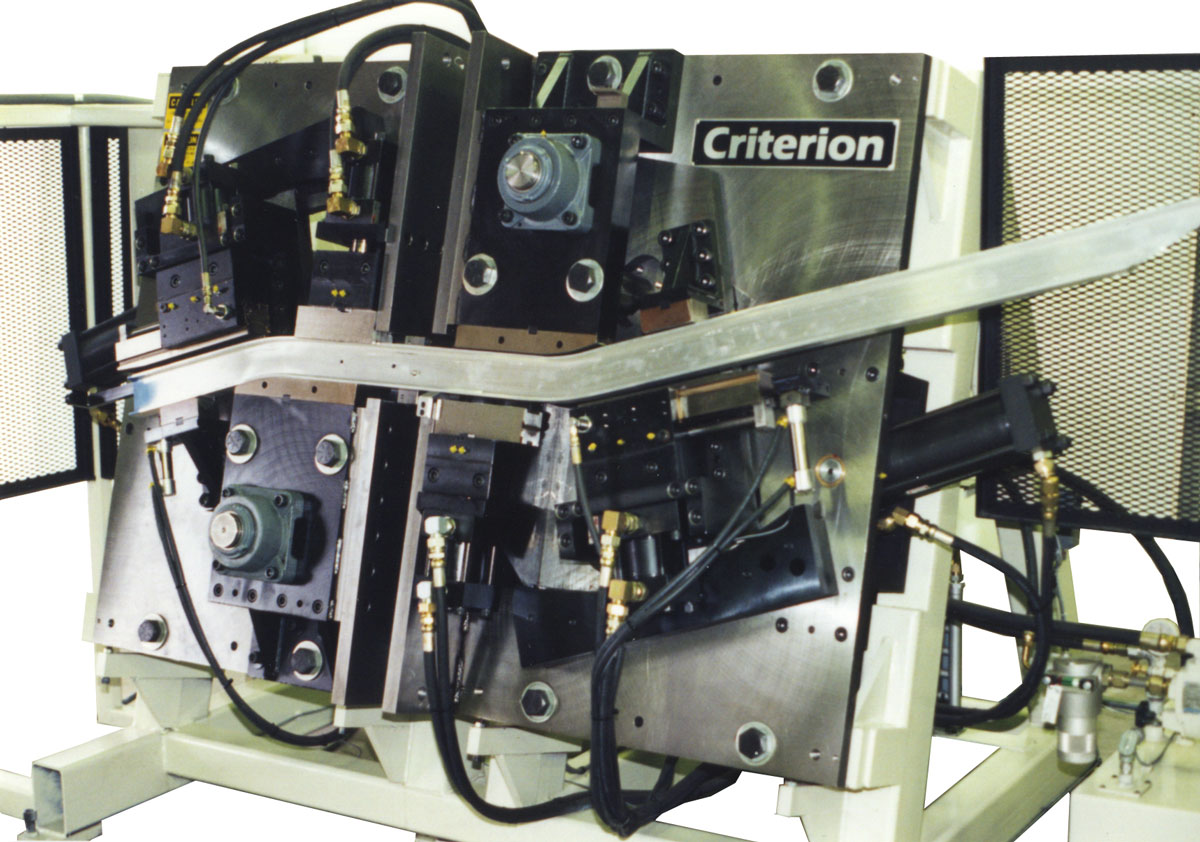

Special Bender

04: SPECIAL BENDER FOR ALUMINUM EXTRUSION


In-Line Transfer Tube Benders

Criterion also provides in-line multiple station transfer Tube Benders that utilize either compression or draw bending heads. The type of control [CNC or non-CNC] utilized depends upon the application.

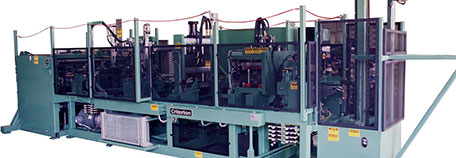

Transfer Machine

2 Axis CNC Pick & Place

05: TRANSFER MACHINE APPLICATION
